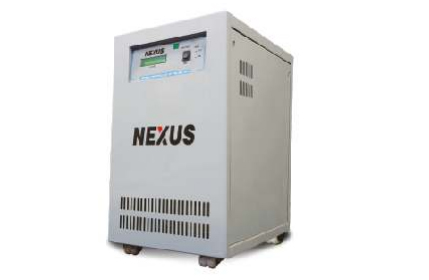

Product Description
| Output voltage | 220 V |
| Output voltage regulation | +/- 1% |
| Output Frequency | 50Hz +/- 0.01% |
| Output Isolation | Galvanic Isolation |
| Power Factor | 0.8 to unity |
| THD | Less than 3% |
| Technology | Micro Controller based Hi Freq. PWM |
| Overload Capacity | 110% |
| Crest Factor | 4:01 |
| Transient Recovery | Within 3 cycle |
| Charger Type | Constant Voltage Constant Current |
| Charging Mode | Trickle, Float & Boost |
| OPERATING CONDITIONS | |
| Operating Temperature | 0-45º C |
| Humidity | 90% Non Condensing |
| Noise Level | Less than 45dB |
| RESPONSE TIME | |
| Transfer Time | 0 ms |
| DIMENSIONS (W x L x H) | |
| 1.0 - 6.0KVA | 275 mm x 520 mm x 518 mm |
| 7.5 - 12.5KVA | 330 mm x 520 mm x 595 mm |
| Output voltage regulation | +/- 1% |
| Output Frequency | 50Hz +/- 0.01% |
| Output Isolation | Galvanic Isolation |
| Power Factor | 0.8 to unity |
| THD | Less than 3% |
| Technology | Micro Controller based Hi Freq. PWM |
| Overload Capacity | 110% |
| Crest Factor | 4:01 |
| Transient Recovery | Within 3 cycle |
| BATTERY CHARGER | |
| Charger Type | Constant Voltage Constant Current |
| Charging Mode | Trickle, Float & Boost |
| OPERATING CONDITIONS | |
| Operating Temperature | 0-45º C |
| Humidity | 90% Non Condensing |
| Noise Level | Less than 45dB |
| RESPONSE TIME | |
| Transfer Time | 0 ms |
| DIMENSIONS (W x L x H) | |
| 7.5 - 15KVA | 450 mm x 600 mm x 800 mm |
| 20, 25, 30 & 40KVA | 450 mm x 800 mm x 825 mm |
| Input Voltage | Three Phase |
| Voltage range | 340 to 460 V |
| Frequency | 45-55 Hz |
| INVERTER | |
| Output Wave Form | Pure Sine Wave |
| Output voltage | 415 V/400 V/380 V |
| Output voltage regulation | +/- 1% |
| Output Frequency | 50Hz +/- 0.01% |
| Output Isolation | Galvanic Isolation |
| Power Factor | 0.8 to unity |
| THD | Less than 3% |
| Technology | Micro Controller based Hi Freq. PWM |
| Overload Capacity | 110% |
| Crest Factor | 4:01 |
| Transient Recovery | Within 3 cycle |
| BATTERY CHARGER | |
| Charger Type | Constant Voltage Constant Current |
| Charging Mode | Trickle, Float & Boost |
| OPERATING CONDITIONS | |
| Operating Temperature | 0-45º C |
| Humidity | 90% Non Condensing |
| Noise Level | Less than 45dB |
| RESPONSE TIME | |
| Transfer Time | 0 ms |
| DIMENSIONS (W x L x H) | |
| 10, 15, 20 & 25KVA | 450 mm x 800 mm x 825 mm |
| 30 - 60KVA | 500 mm x 1020 mm x 910 mm |
